UTMOST GGD 19 Series DC LVDT Linear Position Sensor

FOB Reference Price:Get Latest Price
$83.00 - $280.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 800 >800
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
UTMOST
Model Number:
GGD19
Usage:
Position Sensor, Linear Position Sensor
Theory:
Linear Variable Differiatial Transformer, DC Type
Output:
Analog Sensor
Condition:
New
Name:
UTMOST Single-Ended GGD 19 Series DC LVDT Linear Position Sensor
Design:
Unique
Product:
DC LVDT Linear Position Sensor
Mark:
UTMOST
Model No.:
GGD19
Catergory:
Linear Position Sensor
Feature:
Single-Ended DC operation
Packaging & Delivery
Packaging Details
shaking proof carton box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 800 >800
Est. Time(days) 30 To be negotiated
Product Description

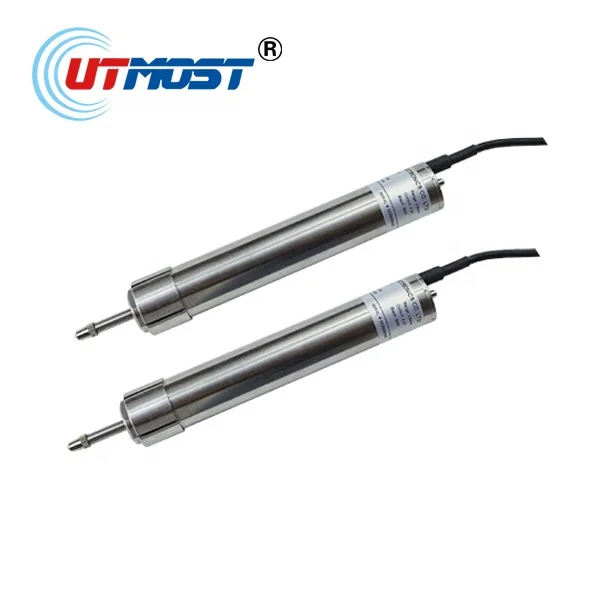

UTMOST GGD 19 Series Single-Ended DC LVDT Linear Position Sensor


General Description:

 LVDT ( Linear Variable Differential Transformer) consists of a primary coil and two secondary coils symmetrically space on a cylindrical form. A free-moving rod-shaped magnetic core inside the coil assembly provides a path for the magnetic flux linking the coils. When the core is moved, it produces a differential voltage output that varies linearly with changes in core position. This technology has now been widely applied to measure different linear position, e.g. tension, expansion, diameter, conicity thickness, eccentricity, differential pressure, liquid level, force, weight and etc. The LVDT has the features of frictionless, low power, high resolution and long duration, which can be applied in harsh environment like high temperature, high humidity and dust.

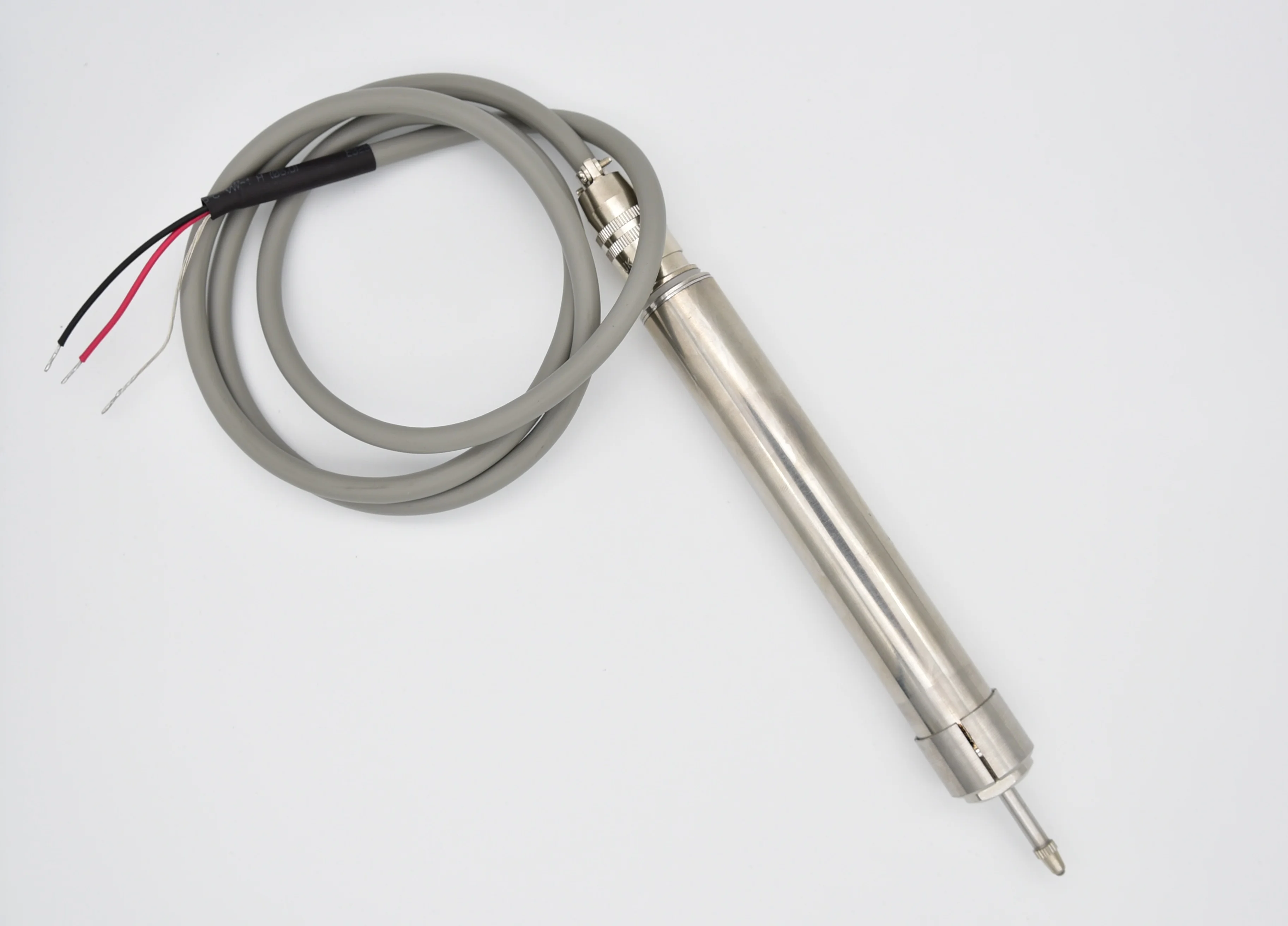

 Spring-loaded DC-LVDTs are designed for a wide range of position measurement and dimensional gaging                           applications. GGD19 Series product adds a reset spring and a sleeve bearing to the LVDT based on the GD19 series,       this rebound type structure provides a great convenience in installation for the customers. There has integrated a           standard signal module inner in the products, the DC standard signal such as 0-10VDC, 4-20mA will be more suitable       for interface with the general digital controller PLC and Computer Data Acquisition System.


This series provide highly reliable, contactless operation with high resolution, excellent repeatability, dynamic and
response, with the added convenience and simplicity of DC input and precalibrated high level output.

UTMOST GGD 19 Series Single-Ended DC LVDT Linear Position Sensor Benefits:


     * Ranges of 2.5 ~ 100mm                                             * Through-bore design
     * DC input                                                                         * Dynamic response
     * High level output                                                          * Rebound structure, convenient for
     * Non-linearity less than or equalto ±0.25%               * Industry-standard 19mm diameter
     * Frictionless operation

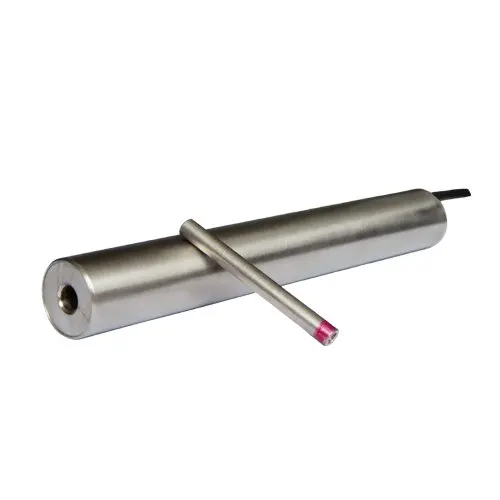

UTMOST GGD 19 Series Single-Ended DC LVDT Linear Position Sensor features an optional captive core design (available for most models) that greatly simplifies installation.

UTMOST GGD 19 Series Single-Ended DC LVDT Linear Position Sensor Features


Unipolar DC operation

Low power consumption

Shock and vibration tolerant

Captive core option (available on select models)

304 stainless steel housing

Application

UTMOST GGD 19 Series LVDT

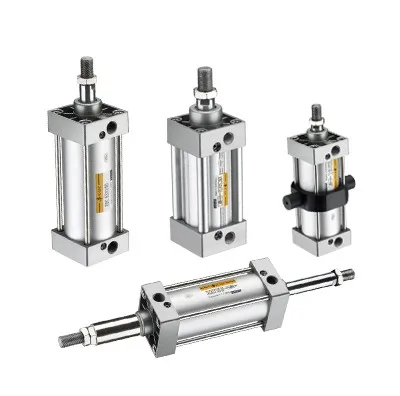

*  Pneumatic cylinder position

    sensing
*   Servo valve positioning

UTMOST Single-Ended DC LVDT

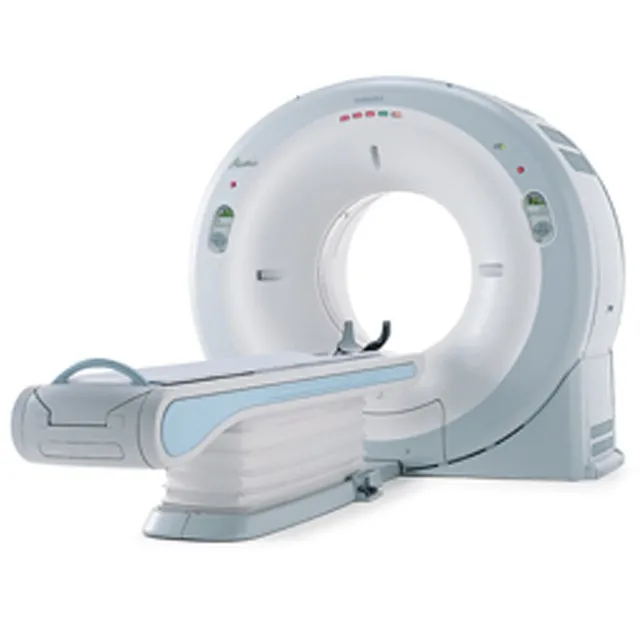

*  Medical equipment

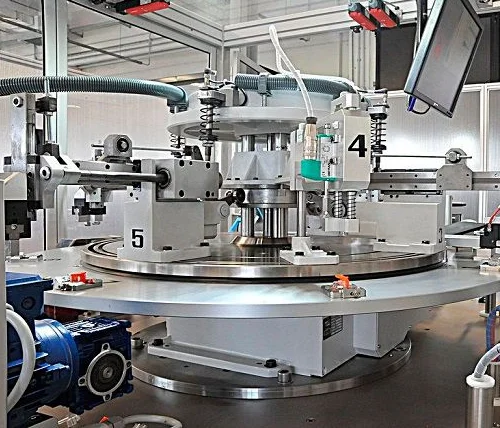

*  Automatic assembly equipment

*  General industrial

UTMOST LVDT GGD19


*  Hydraulic cylinder position

*  Valve position sensing

*  Position feedback

UTMOST GGD 19 Series Single-Ended DC LVDT Linear Position Sensor Quality Guarantee

We offer original and authentic DEC products. Certificate of Origin, Certificate of Manufacturer, are available with the product.

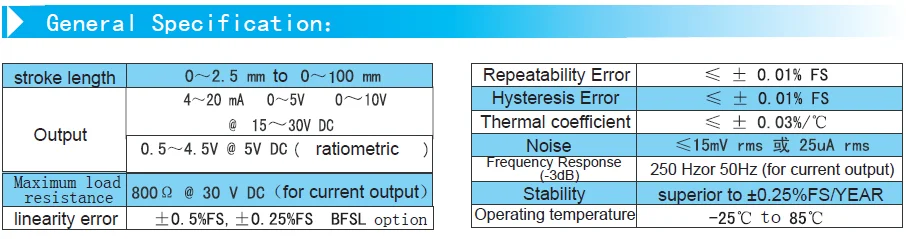

specification
Hot Products

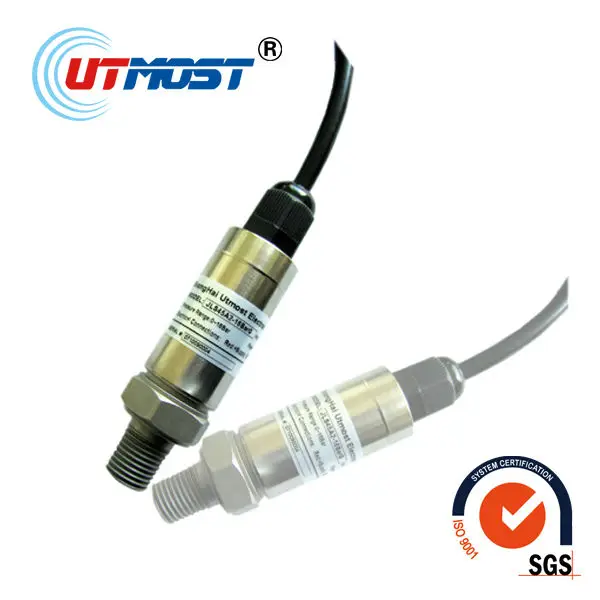

Our wide range of product include pressure sensor, temperature sensor, differential pressure sensor, position sensor, liquid level sensors, transmitters and field display instruments. LVDT is one of our famous products.

About Us


Shanghai Utmost Electronics Corporation develops, designs, manufactures, and produces sensors, transmitters and automation instruments for customers in China and internationally.

Our wide range of product include pressure sensor, temperature sensor, differential pressure sensor, position sensor, liquid level sensors, transmitters and field display instruments. We work with customers of all sizes in a variety of industries, such as Machinery, Nuclear Power, Refrigeration and Air Conditioning, Water Supply, Medical Equipment, and some other fields. From Shanghai to the U.S. and Europe, our customers range from diversified industrial manufactures to high technology leaders, and we provide our customers with standard low-cost sensor products as well as fully customized products with high precision and reliability at fair price.

Our strong research and development department enables us to provide the highquality, customized, and most reliable products to our customers. As your partner for your custom designed solutions, we initially analyze your exact measurement and requirements and cooperate with you to develop a truly innovative product to meet your needs. Utmost Electronics employees are the core strength of our company. Our specialists' know-how and their ongoing research and the many years of experience of our sales engineers ensure that our products can be easily integrated

into your system and best meet your specific applications.


Customer satisfaction is our number one priority. We are proud of our good reputation, and we are ready for your future measurement challenges.

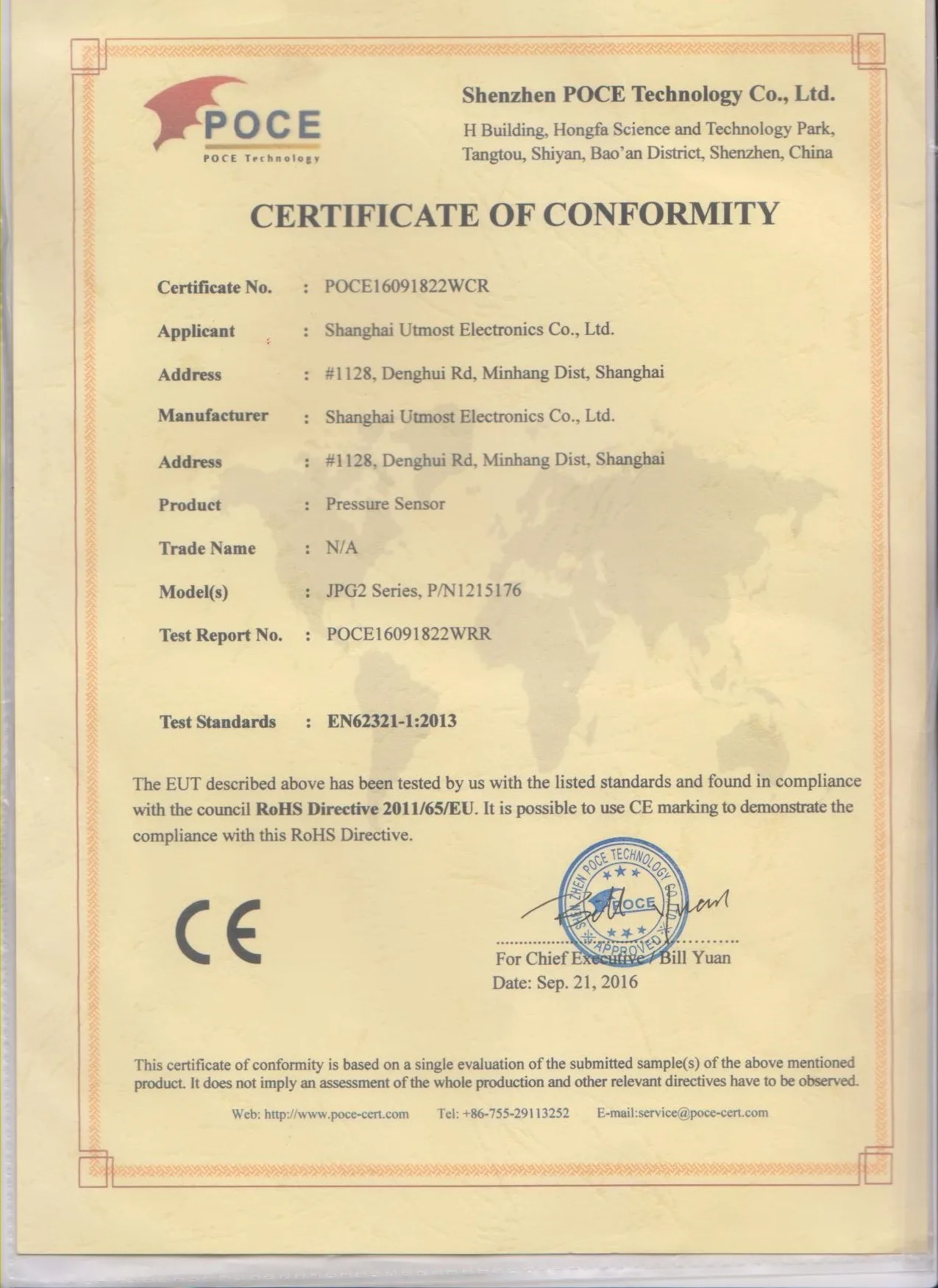

Our Certificates
