air differential vacuum pressure transmitter pressure sensor for compressor

FOB Reference Price:Get Latest Price
$27.00 - $180.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
UTMOST
Model Number:
JPB
Output:
0.5-4.5V/0-5V/1-5V/0-10V/4-20mA
Linearity:
±0.5%FS;±0.25%FS;
Range:
-0.1~200MPa
Material:
17-4PH; 304SS, 316L
Mounting thread:
M20*1.5;M12*1.5;G 1/2;G 1/4;1/8 NPT; 1/4 NPT;1/2 NPT; 1/8 BSPT;
Electrical connection:
1m shielded cable/Packard connector/Hirschman connector and others
Pressure type:
Gage/Absoluted/Sealed
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton package for export
Port
Shanghai
Product Description

The JP series pressure transducers are highly cost-effective and suitable low cost, high volume commercial and industrial applications. This series are all MEMS technologies, compensated with digital ASIC. EMI/RFI circuit is built incompact laser welded stainless steel case to supply highly accurate, reliable and stable output for limit installation space.
This product is geared to the OEM customer using medium to high volumes with optional pressure ports and electrical connections. The standard version is suitable for many, but applications the dedicated design team stands ready to provide a custom design where the volume and application warrants.

Features

• MEMS technology, stainless steel construction
• One-piece construction,No"O" ring, No welds, No leakage
• Low cost, High reliability

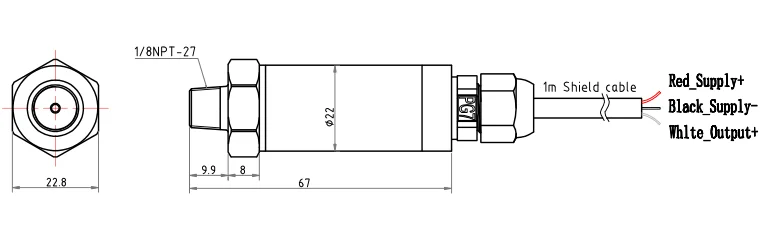

Dimensions example

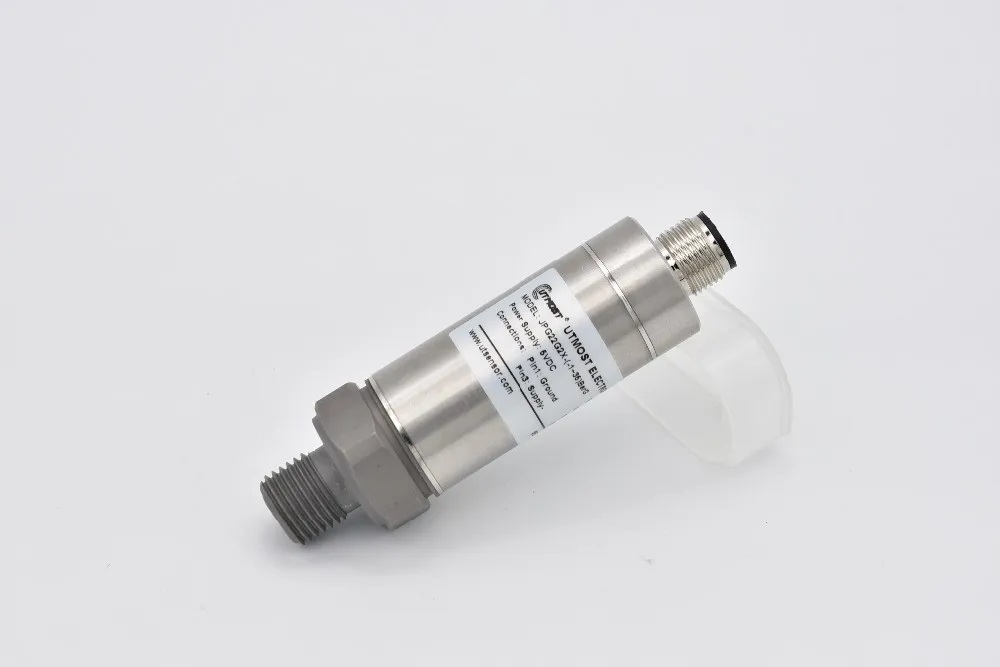

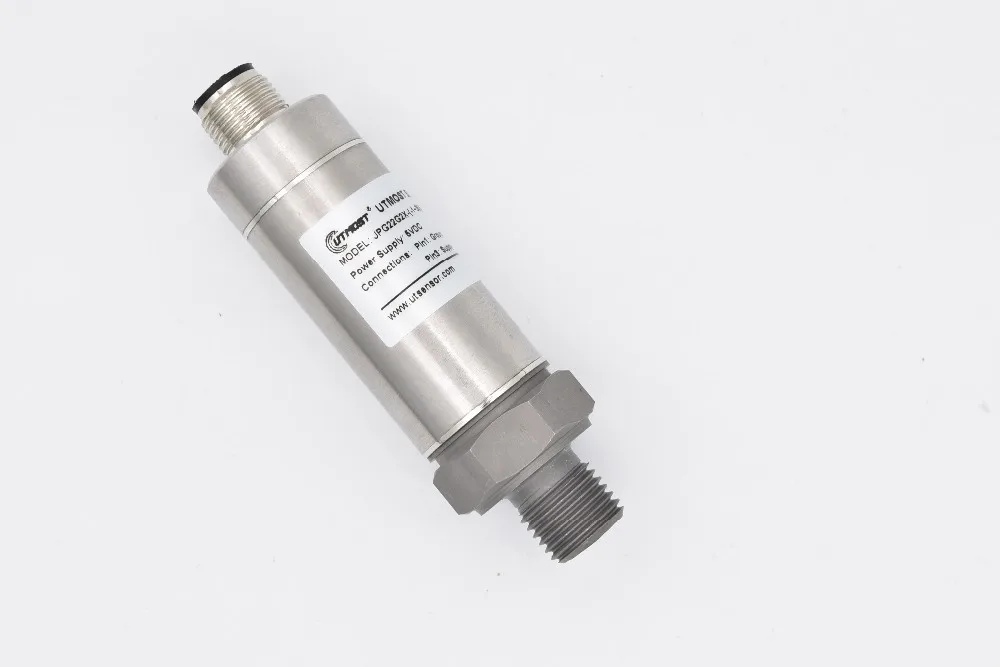

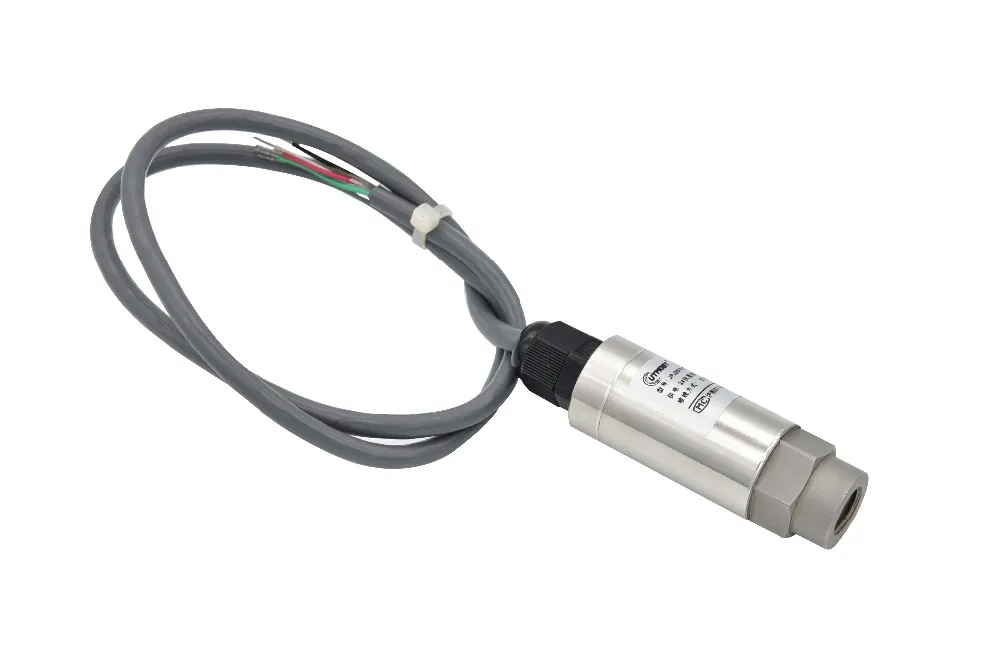

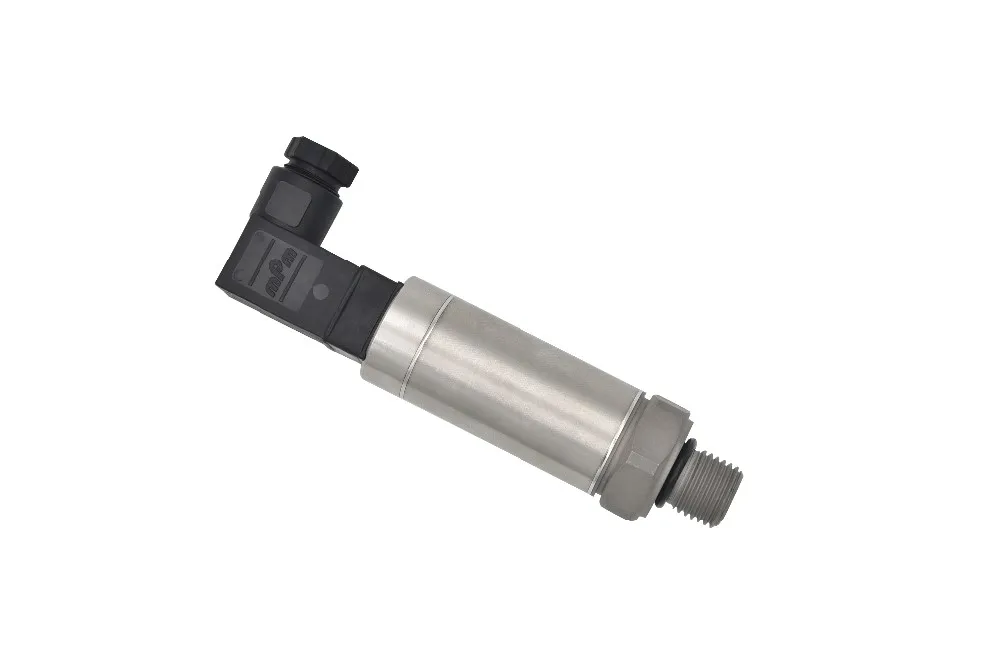

Product picture
Application
Packing & Delivery

The courier charge is estimated cost, it maybe a little different with actual one.
So please discuss the courier charge with us firstly, please don't place order directly, thanks.

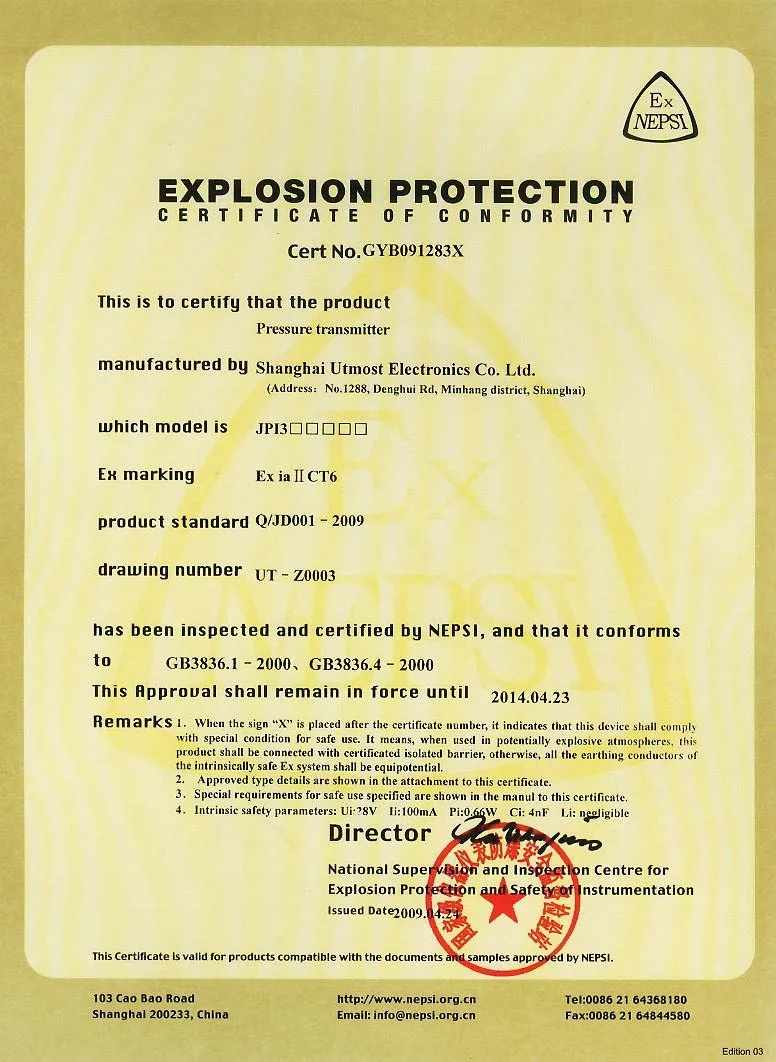

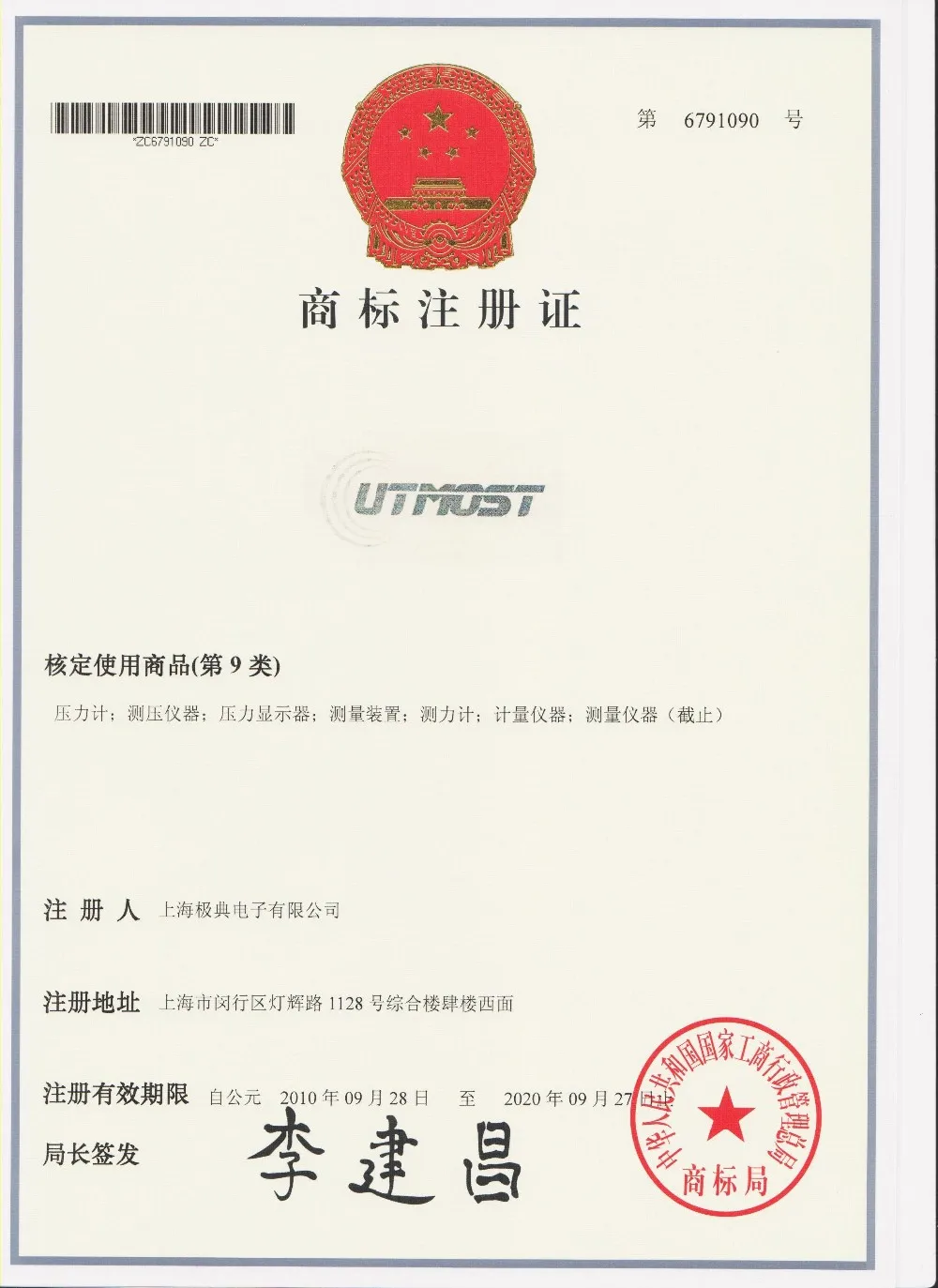

Certificates

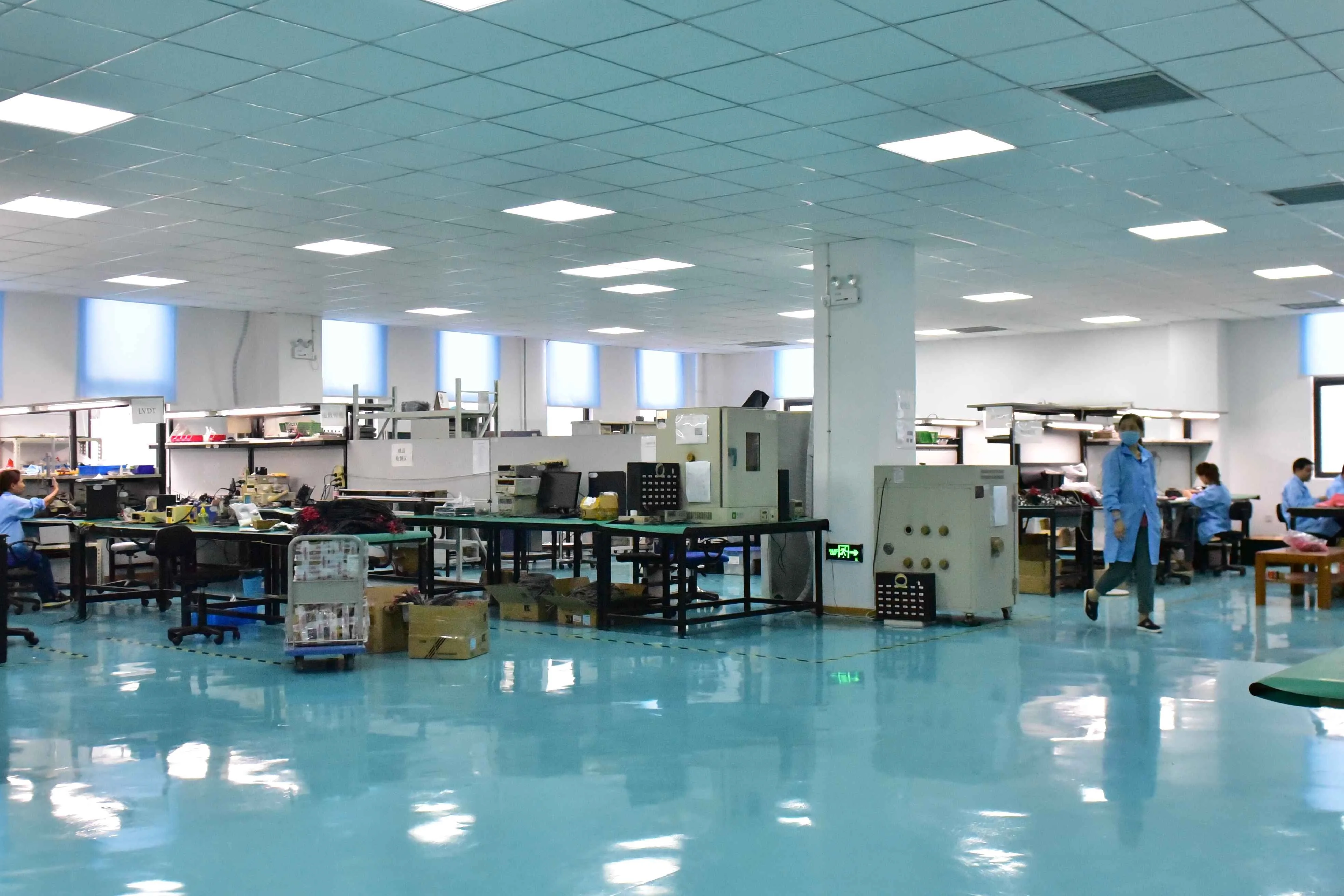

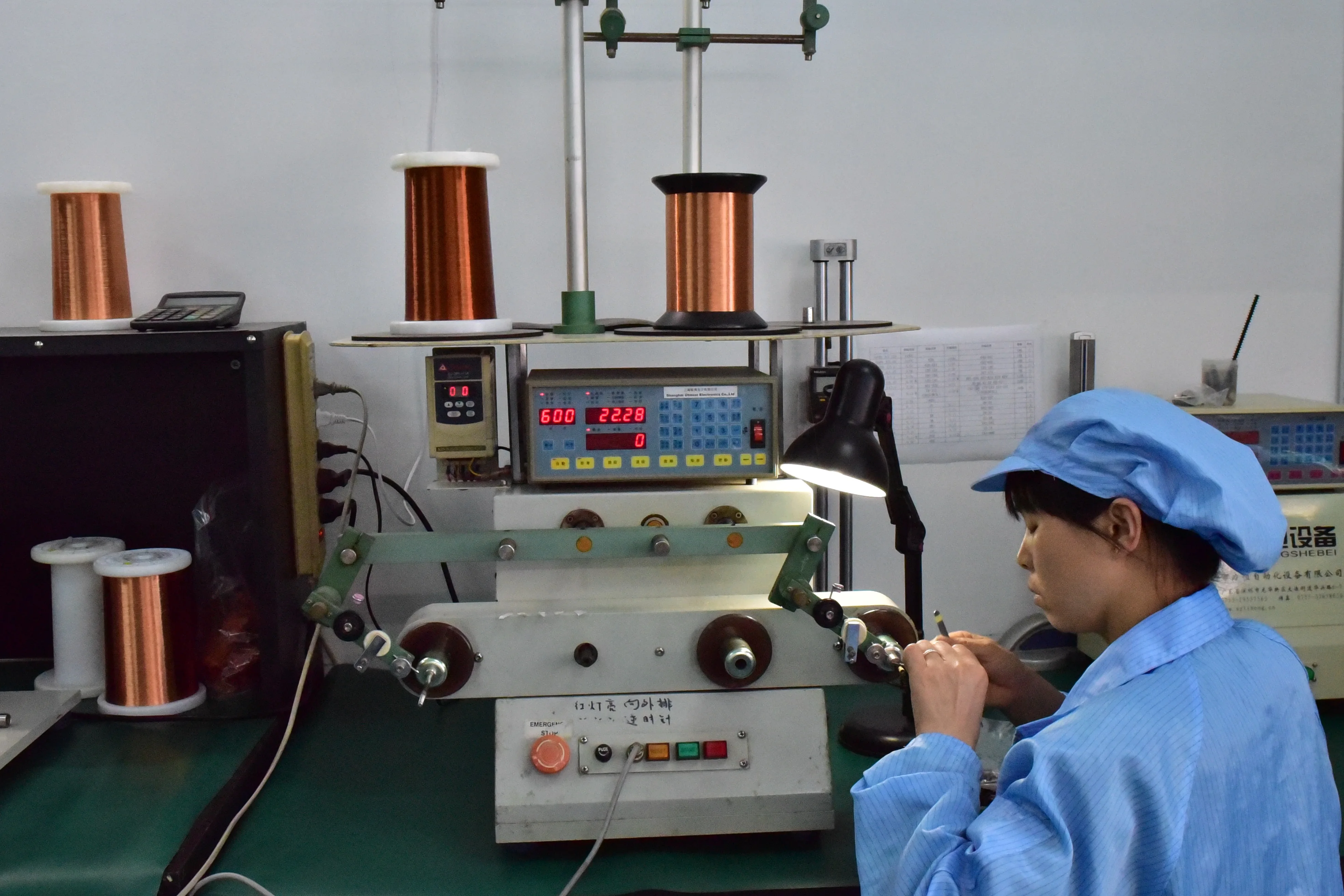

Company information
